MindControl Helmet (Burning Man 2026)

The MindControl Helmet is the second version of a wearable art piece built for Burning Man 2026. It talks back: you say “hey mycroft”, ask a question, and the helmet answers out loud with no internet connection. It also has animatronic eyes, two LED strips, a front camera, a 48×12 LED matrix on the back, and a web portal that a phone uses to drive all of it.

Built for	Burning Man 2026
Main computer	Raspberry Pi 5 + Hailo-10H NPU (AI HAT+ 2)
Co-processor	Seeed XIAO ESP32-S3 (servos and LEDs)
LLM	Qwen2.5-Instruct 1.5B on hailo-ollama
Speech	openWakeWord, faster-whisper base.en, Piper TTS
Connectivity	Own WiFi hotspot, BLE to the LED display

Contents

1. Architecture
2. Hardware
3. Voice AI
4. Animatronic eyes and LEDs
5. LED display (reverse engineered)
6. Phone portal and networking
7. Reliability
8. Previous versions
9. History
10. See also

Architecture

The Raspberry Pi is the orchestrator. A phone joins the helmet’s own hotspot and opens an HTTPS web portal; the portal drives the camera, the audio, the LLM chat and both pieces of helmet hardware.

                 phone (on the "mindcontrol" WiFi hotspot)
                                │  HTTPS + WebSocket
                                ▼
                 webportal (aiohttp, Raspberry Pi 5)
          │           │            │             │            │
       camera     mic/speaker   LLM + STT      serial         BLE
     (picamera2)   (WM8960)   (hailo-ollama,  ESP32 bridge   Shining Display
                               faster-whisper)  → servos,      48×12 panel
                                                  LED strips

The project is split across three repositories: the Pi software (MindControlHelmet2_2026), the ESP32 firmware and host tools (HelmetCoprocessor), and the BLE display library (shining-helmet-bt-protocol).

Hardware

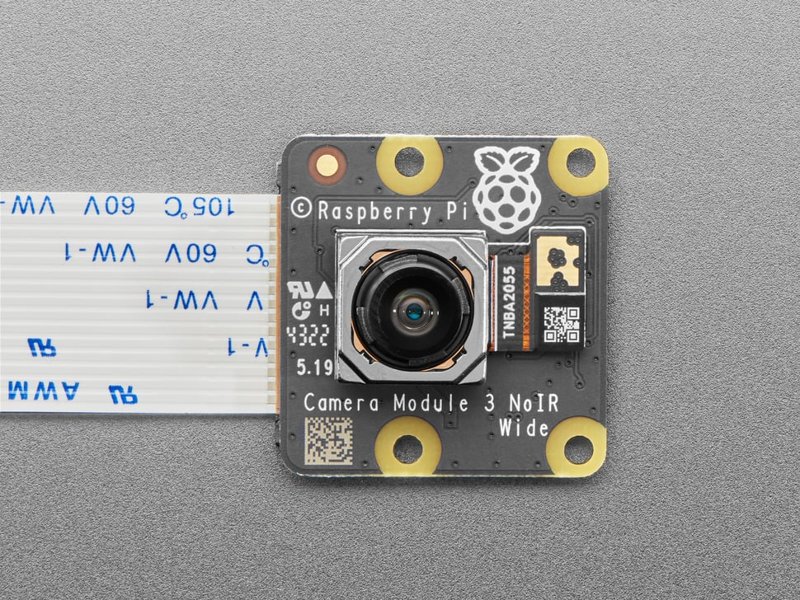

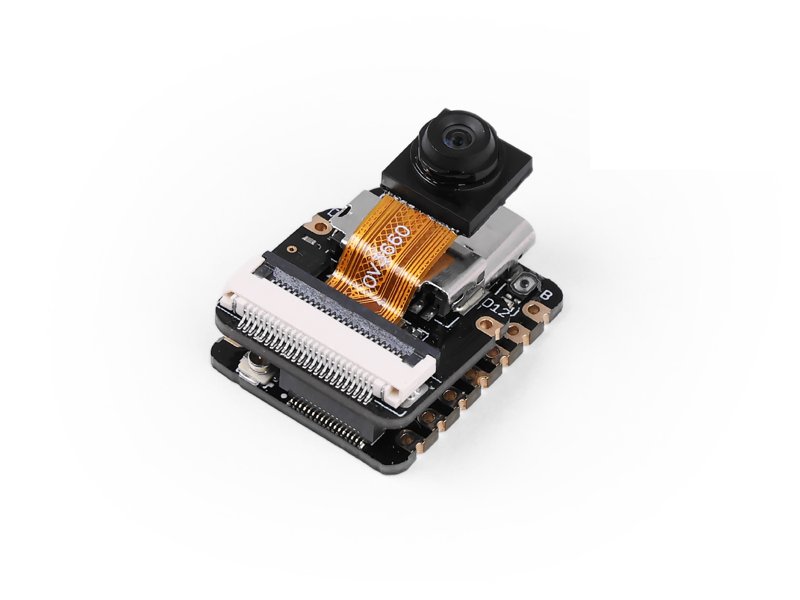

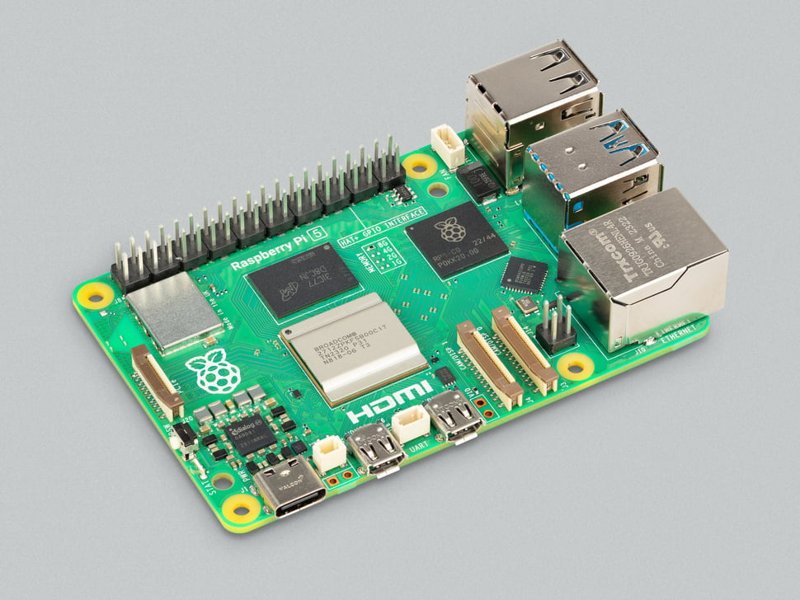

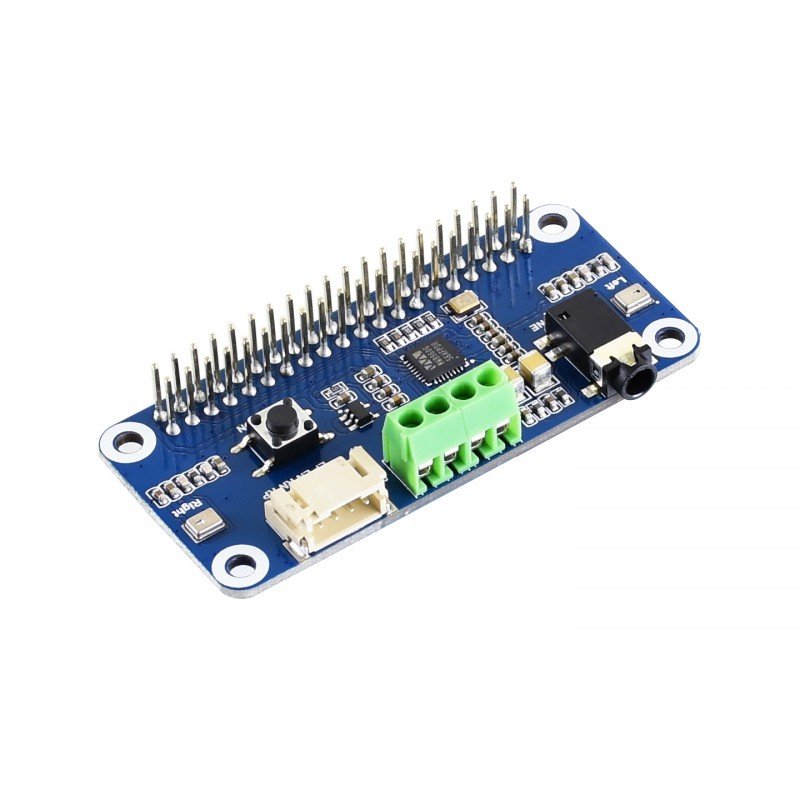

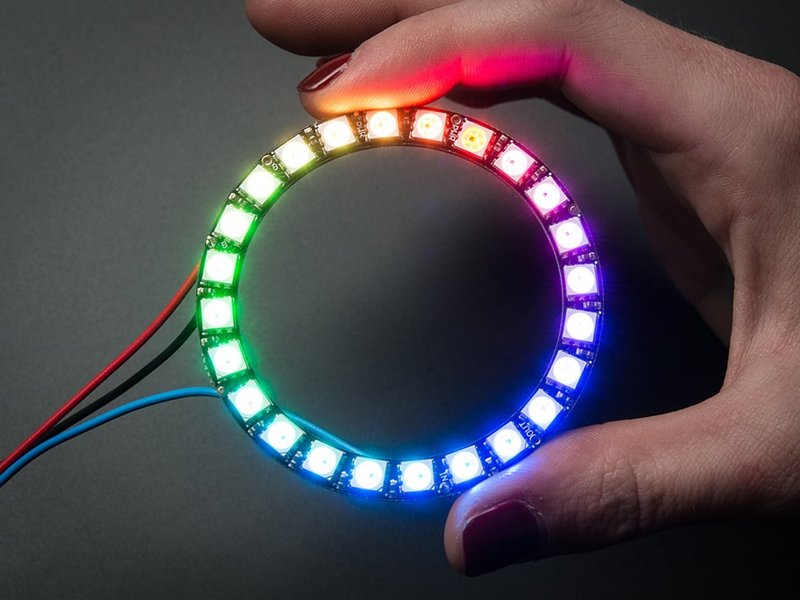

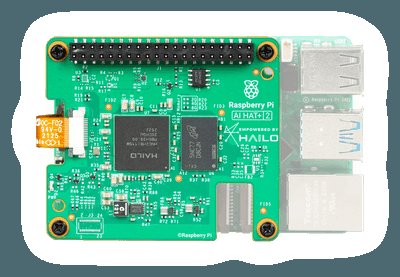

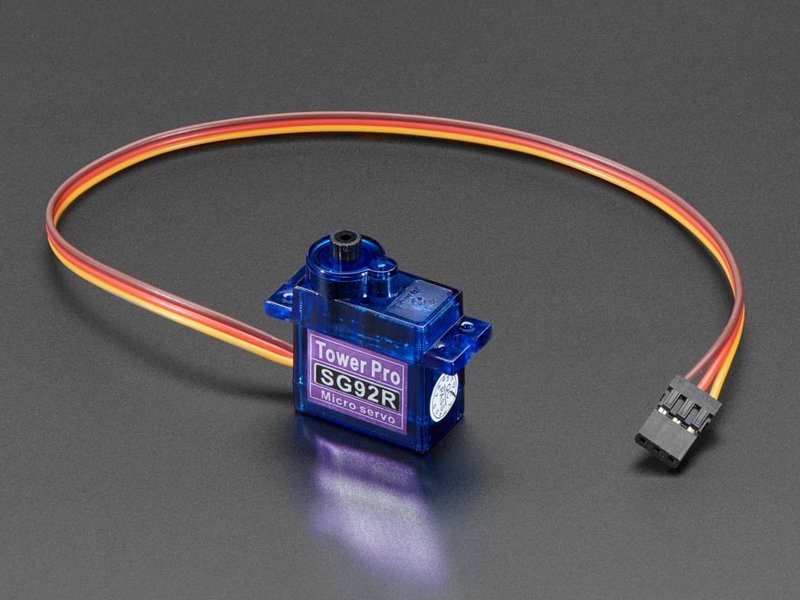

Product photos from Raspberry Pi, Adafruit, Waveshare, TP-Link, Seeed Studio and an SLShining retailer. The servo and LED ring photos show representative parts.

Voice AI

Pipeline

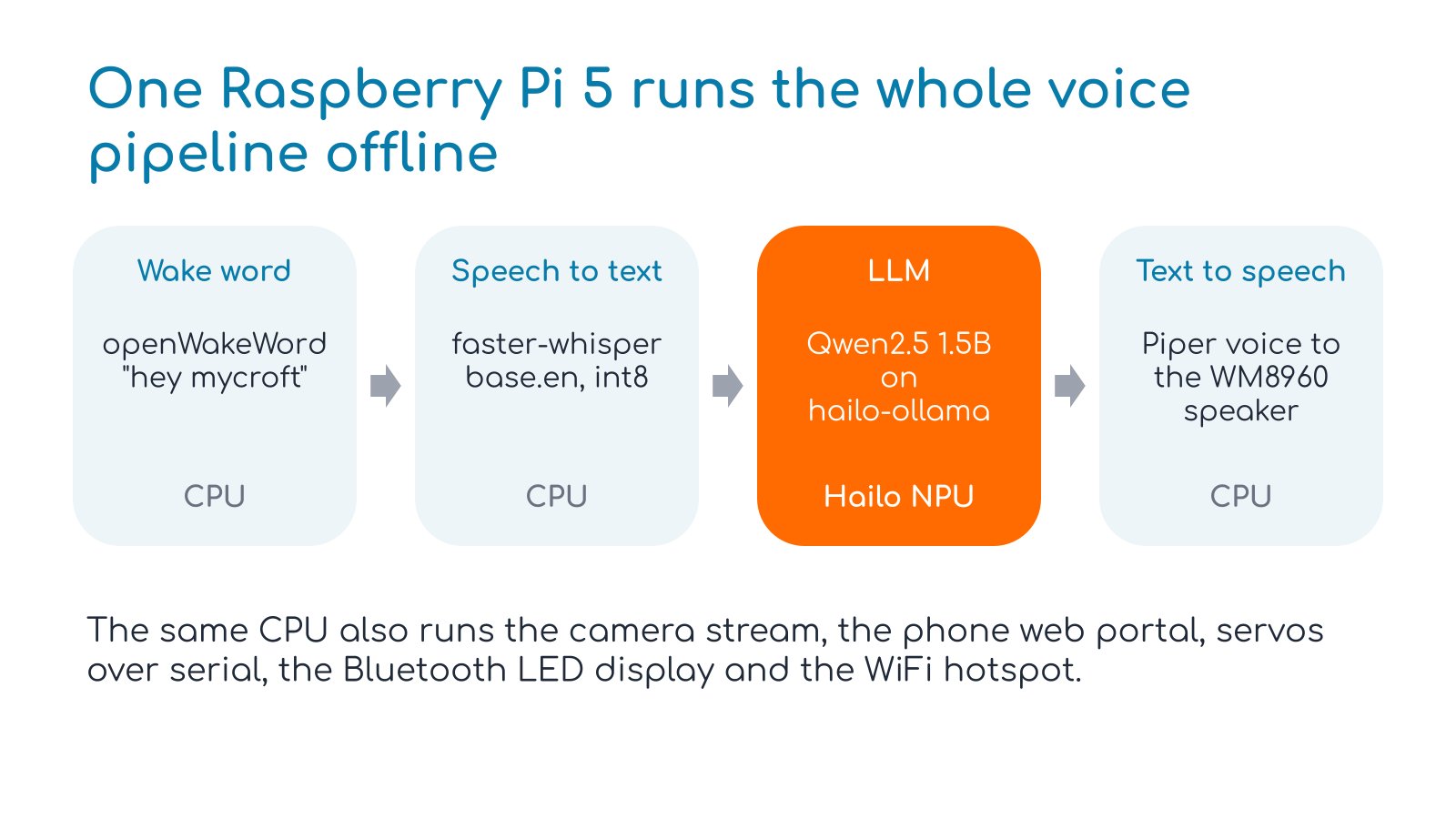

Everything runs on the helmet:

1. Wake word: openWakeWord with the pretrained “hey mycroft” model (said “MY-kroft”).
2. Speech to text: faster-whisper base.en, int8, on the CPU.
3. LLM: qwen2.5-instruct:1.5b served by hailo-ollama on the Hailo-10H.
4. Text to speech: Piper with the en_US-lessac-medium voice, played through the WM8960 speaker.

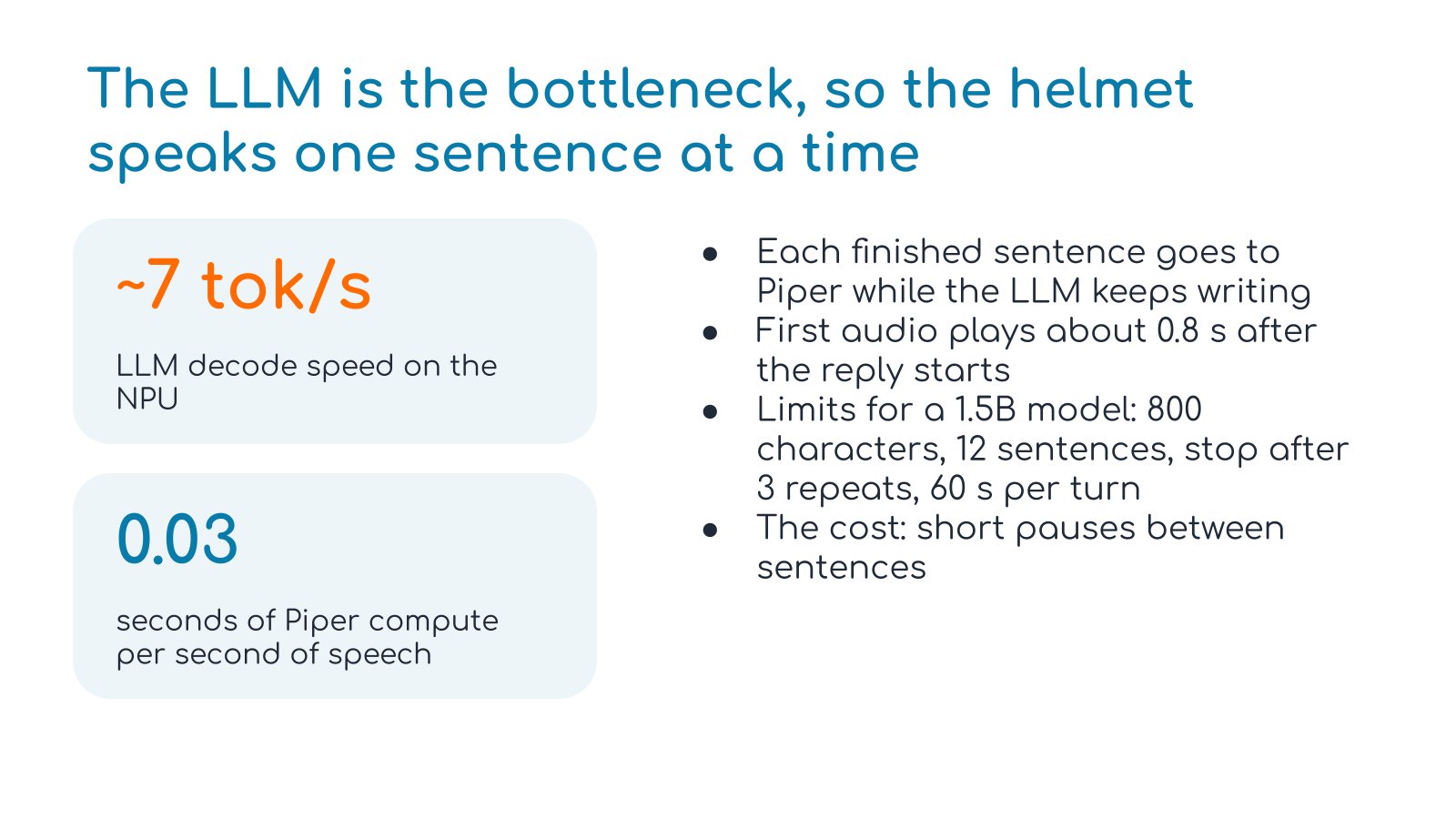

Replies stream sentence by sentence: each finished sentence goes to Piper while the LLM keeps generating, so speech starts before the answer is complete. Piper needs about 0.03 seconds of compute per second of audio, so the LLM’s decode speed is the only real bottleneck.

Model choice

hailo-ollama ships five models for the Hailo-10H:

Model	Tokens/s	Verdict for voice
llama3.2:3b	2.7	Too slow for conversation
qwen2.5-instruct:1.5b	6.8	Chosen: best balance of speed and quality
qwen2:1.5b	8.0	Faster, but noticeably weaker answers
qwen2.5-coder:1.5b	7.9	Tuned for code, not chat
deepseek_r1_distill_qwen:1.5b	6.8	Long reasoning traces delay every answer

Speeds are from schwab.sh’s AI HAT+ 2 benchmarks (decode, batch 1, Q4_0). A 1.5B model needs guardrails: replies are capped at 800 characters and 12 sentences, a turn stops after the same sentence repeats three times, and every turn has a 60-second hard timeout.

NPU vs. CPU

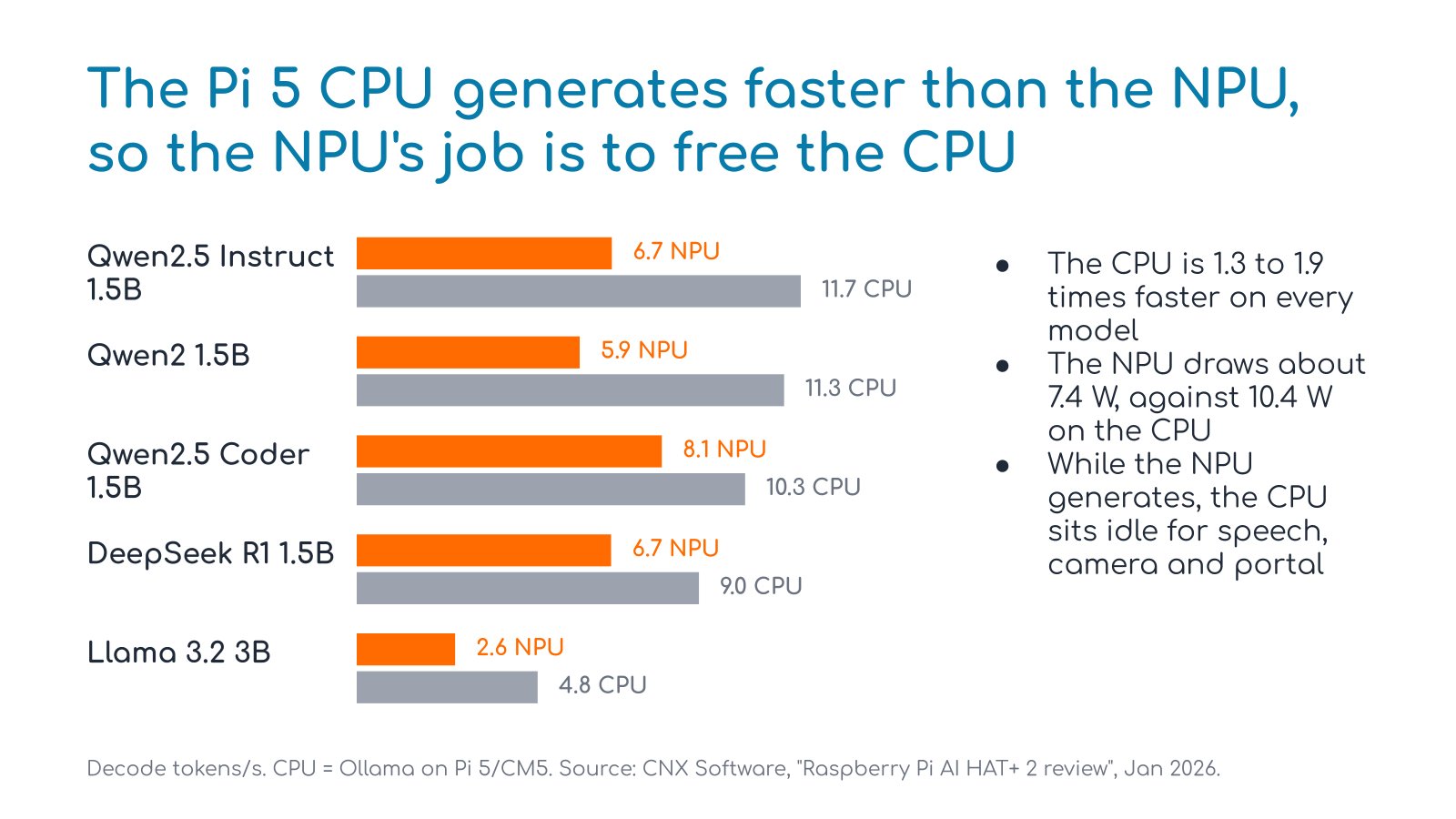

Public reviews show the Pi 5’s own CPU generating faster than the Hailo-10H on every one of these models (for example 11.7 vs. 6.7 tokens/s for Qwen2.5 1.5B, per CNX Software). The NPU is still useful here because the CPU is busy with speech to text, the wake word, TTS, the camera stream and the web portal; offloading the LLM keeps those running.

Earlier experiments

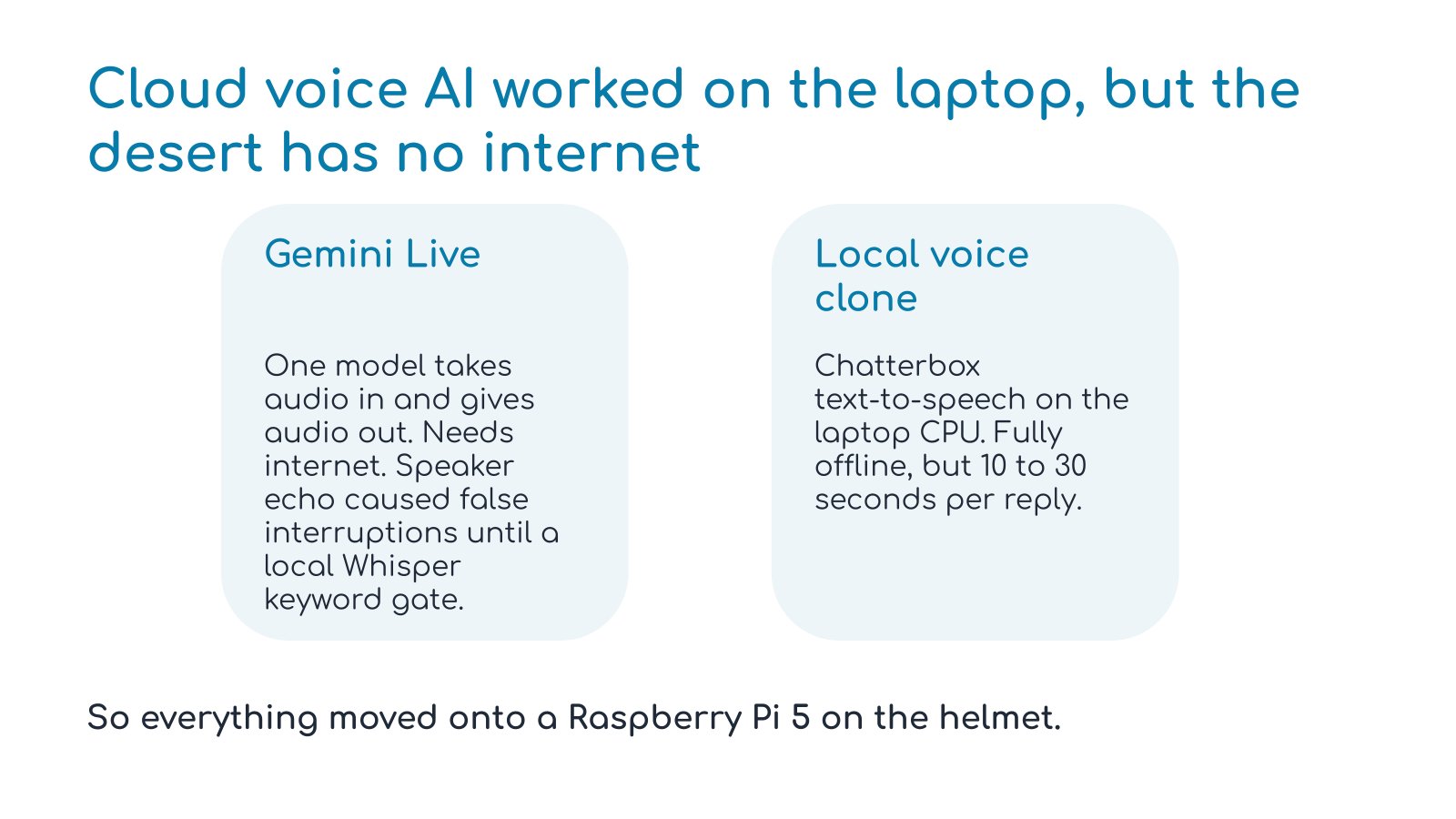

Before the Pi build, a laptop prototype (CloneVoiceTest) compared three approaches: faster-whisper with the Claude API and ElevenLabs, Gemini Live (one model, audio in and audio out), and a local Chatterbox voice clone. The cloud options needed internet, and the local voice clone took 10 to 30 seconds per reply on a CPU, so the final design moved everything onto the Pi with smaller, faster models.

Animatronic eyes and LEDs

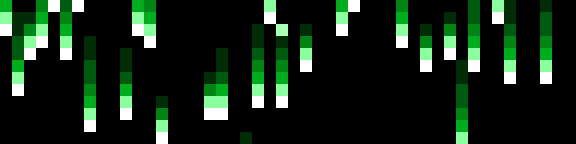

The HelmetCoprocessor firmware runs on a XIAO ESP32-S3 and talks to the Pi over a framed serial protocol. It passes RC PWM inputs through to three servos (eye X, eye Y, eyelid) and has three modes: BYPASS, AUTO and SLAVE (host control). It drives the two WS2812 strips with built-in effects (Matrix, Glitter, Comet, Flash, Gaze, Flashlight) or raw per-pixel streams, with a live 0–255 brightness per strip, since 200 pixels at full white would draw about 12 A.

The helmet strip is a single wire routed through eight physical segments, so the firmware keeps a measured map of which pixel index sits where on the helmet.

LED display (reverse engineered)

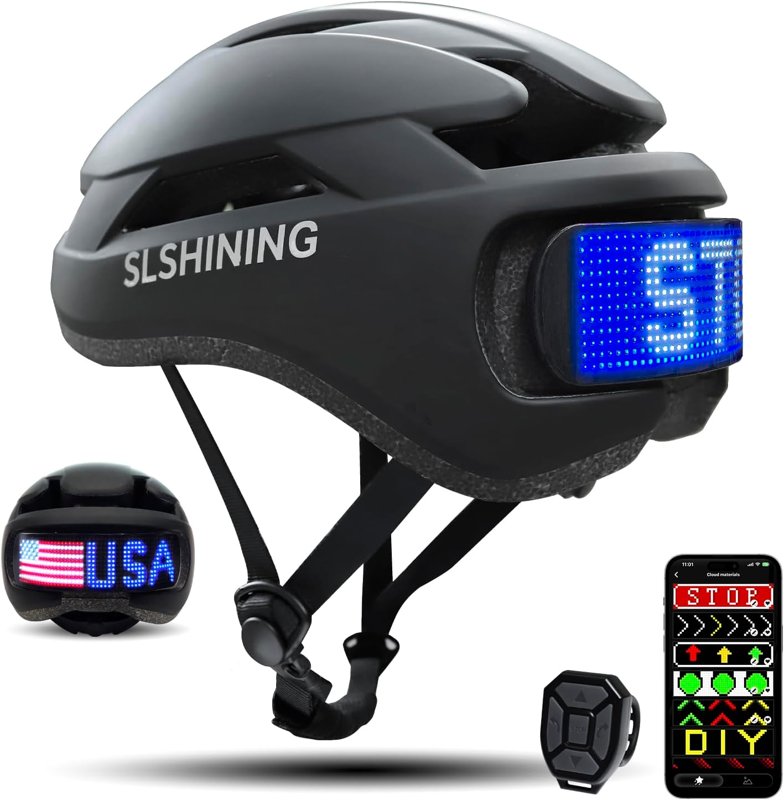

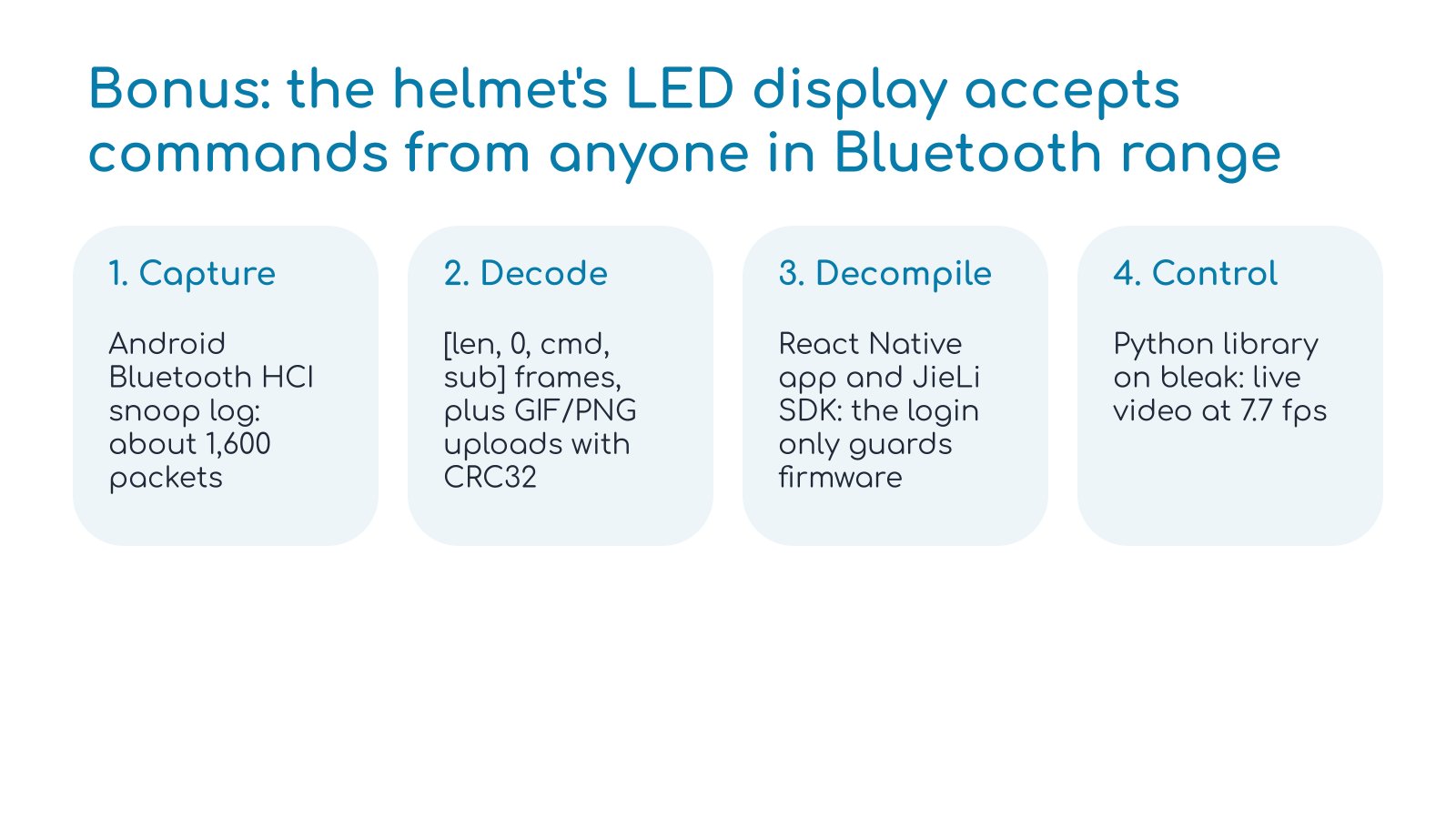

The 48×12 panel on the back is a consumer SLShining bike-helmet display, normally controlled by the “Shining Display” Android app. The shining-helmet-bt-protocol library replaces the app:

• Capture: an Android Bluetooth HCI snoop log gave about 1,600 BLE packets.
• Decode: commands use a [len, 0x00, cmd, sub, args] framing; images upload as plain GIF/PNG files with a CRC32 header.
• Decompile: the app is React Native (Hermes bytecode) on a JieLi chipset. The JieLi authentication handshake only protects firmware updates; the display service accepts commands without it.

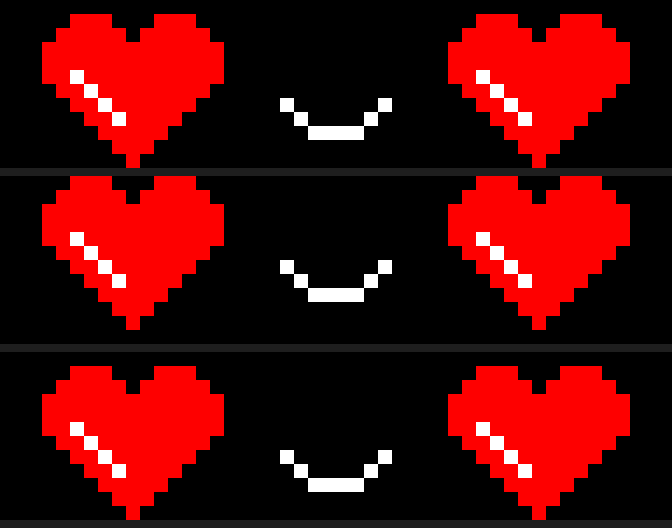

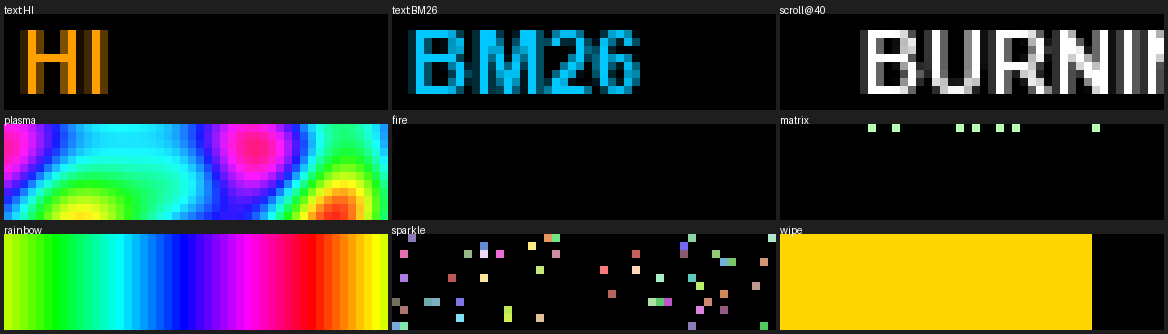

• Control: a Python library on bleak handles text, stills, animated GIFs and live streaming at about 7.7 fps. The vendor app’s own animated-GIF upload is broken, so this is the only working uploader for the device.

Anyone in Bluetooth range can push frames to this panel.

Phone portal and networking

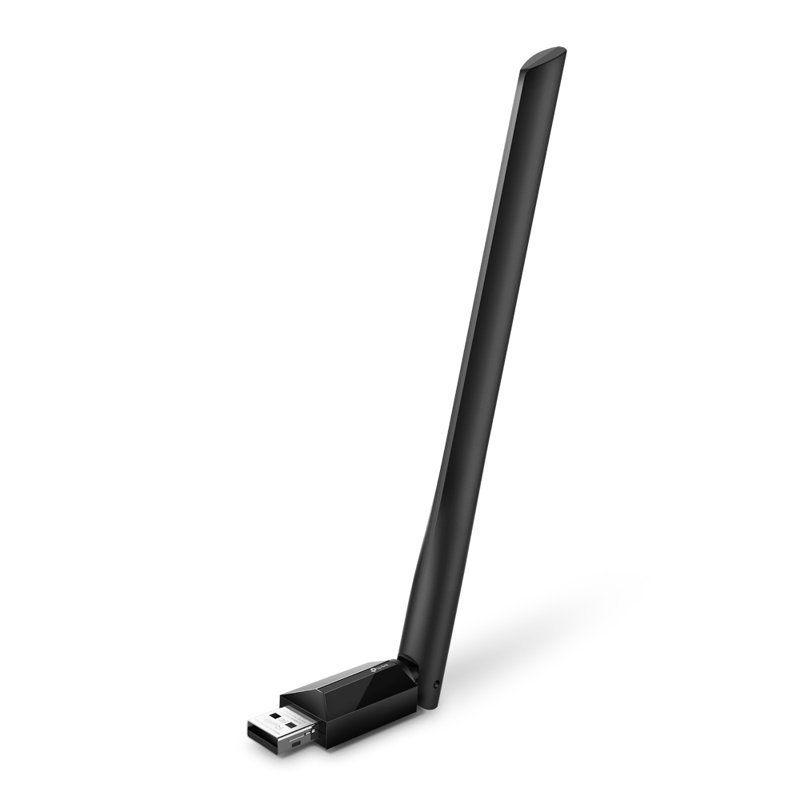

• The Pi runs its own access point (mindcontrol) on a USB WiFi adapter, switchable between 2.4 GHz and 5 GHz from the portal. 5 GHz removed most stutter in a noisy RF environment.
• The portal is served over HTTPS because Chrome only allows microphone access (getUserMedia) in a secure context.
• Features: camera view, live audio from the helmet mic, push-to-talk to the helmet speaker, LLM chat (typed or voice), goggles and LED control, and the LED display.
• Android Chrome sent push-to-talk audio to the phone earpiece until echo cancellation, noise suppression and auto-gain were turned off.

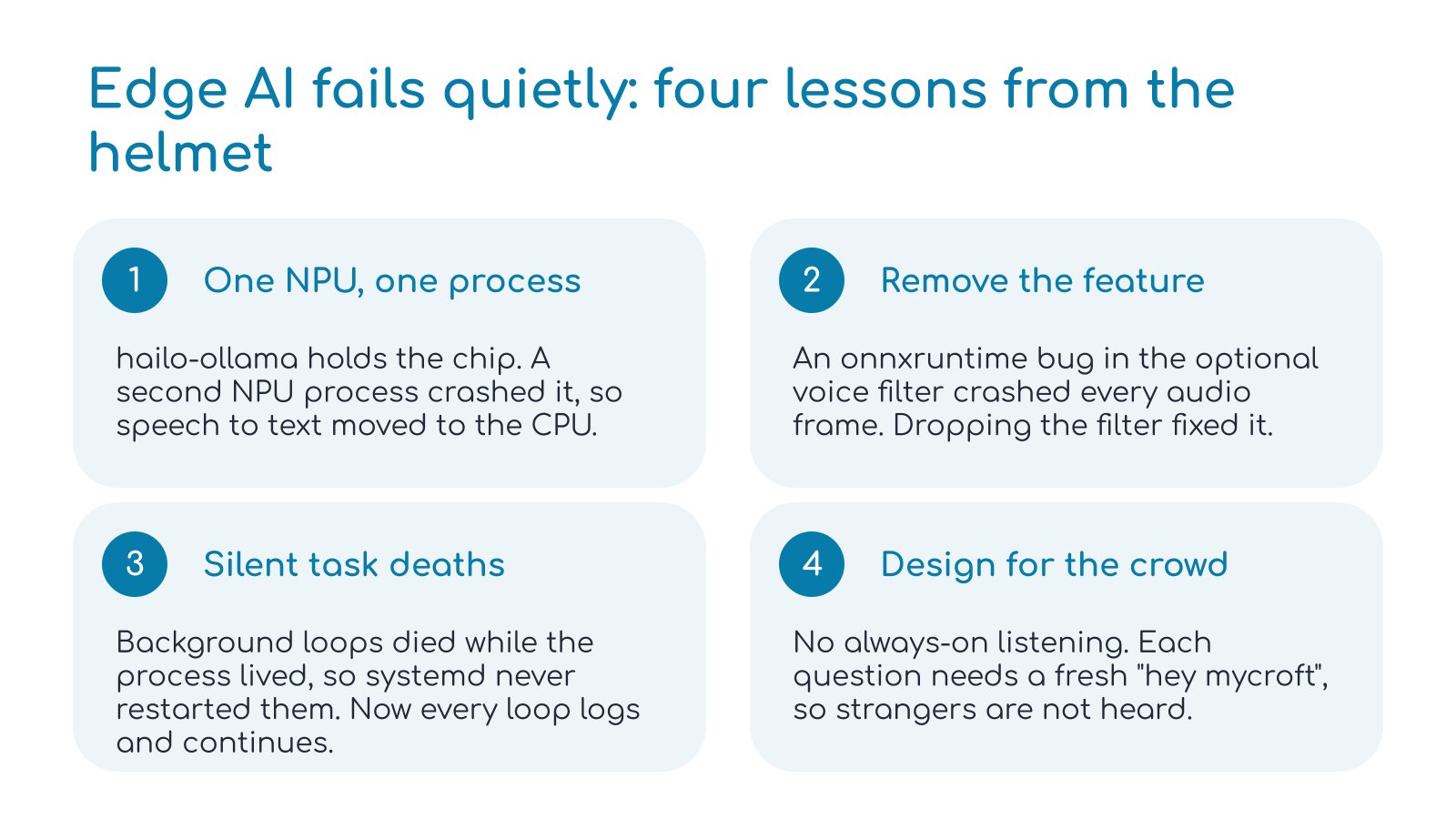

Reliability

Lessons from getting it field-ready:

• One NPU, one process. hailo-ollama holds the Hailo-10H for its whole lifetime. A second process using the NPU (Hailo’s Whisper) made it crash, so speech to text runs on the CPU.
• Remove the feature, not the bug. An onnxruntime bug (#23878) in openWakeWord’s optional voice-activity filter crashed every audio frame. Turning the filter off fixed it.
• Silent task deaths. Background loops died without crashing the process, so systemd never restarted anything. Every loop now catches, logs and continues.
• Retry forever. All services use Restart=on-failure with StartLimitIntervalSec=0, so a persistent failure keeps retrying instead of giving up after five attempts.
• Design for the crowd. There is no always-on listening; every question needs a fresh wake word so the helmet does not pick up strangers.

Previous versions

The LED eye work started on the helmet built for Maker Faire Shenzhen 2025 (mfzs_LED_helmet). The local voice stack started as SteamTalk, a Pi 5 + Hailo voice assistant.

History

Date	Milestone
2025-11	Maker Faire Shenzhen LED helmet
2026-04	SteamTalk: first local voice assistant on Pi 5 + Hailo
2026-06-10	Shining Display BLE protocol fully reverse engineered
2026-08-15	Hotspot, audio HAT, Hailo NPU, local LLM and voice chat working
2026-08-26	Wake word, BLE display integration and new LED effects
2026-08-27	Goggles controls redesigned, reliability pass for field use

See also

• Notes: EdgeAI @ Burning Man at Google Dev Day
• Google’s Gemma Translator, a similar offline voice pipeline on a CPU-only Raspberry Pi 5
